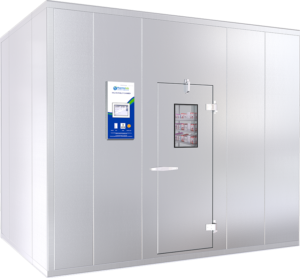

Walk-in Stability Chamber
Climogen Scientific stability testing chambers are designed to meet, if not exceed, stringent quality standards recognized internationally. Offering all temperature and relative humidity conditions specified in ICH guidelines as below:
25°C/ 60% RH 30°C/ 65% RH 30°C/ 70% RH 30°C/ 75% RH 40°C/ 75% RH 25°C/ 40% RH 30°C/ 35% RH 40°C/ NMT 25% RH
Today, other than Pharma and Bio-pharma products, stability studies are required for Alternate medicines, Food & Beverages, Medical devices, Cosmetics and other items to check the environmental effects on the product.
Featured
Software featured
Mobile alert system
Touch screen display
Flame proof
Documentation
Supply air duct
Software
Water circulation system
- Prefabricated modular structure with PUF/Rockwool insulated panels and reinforced floor panel.
- Interior Stainless Steel and Exterior PPGI/Stainless Steel finish.
- Adequate illumination inside the chamber.
- Glass view panel with specially designed leak proof door.
- Racks & trays made of Stainless Steel with adjustable tray heights.
- CFC free refrigeration systems.
Man, Machine, Product and Environmental Safety
- Safety system to cut off the power supply in case of overshoot and undershoot of Temperature and Humidity conditions giving audio visual alarms.
- Additional safety thermostat to cut off the power supply in case of temperature overshoots.
- Low water level alarm for humidity system.
- Emergency push button inside the chamber to de-energise magnetic lock.
- Panic switch inside the chamber with audible alarm outside.
- Manual unlocking mechanism for door from inside the wal
Hydronic Cooling System
- Thermolab has innovated a unique chilled water circulation system which reduces the electrical consumption by 60% and water consumption by 90%.
- Factory assembled refrigeration system, avoiding on-site piping work.
- This unique design enables maintenance of optimum cooling coil temperatures depending on the chamber conditions and resultant Dew Point.
- The life of compressor increases as the running time of compressor has enormously decreased.
- Compact plug and play design and can be placed behind the chamber or in the technical area.
Air Processing Unit (APU)
- Designed to achieve optimum energy utilization with Integrated Cooling, Heating and Humidifying system.
- The airflow is designed to have uniform conditions throughout the chamber.
- Custom designedsupply and return air ducts particularly for chambers having larger storage volumes.
- Sleek APU design resulted in increased storage volume.
Control Panel
- Newly designed control panel as per international electrical safety standards.
- PLC based control system with 7” colour HMI, and front mounted compact design.
- Country specific electrical panel design to comply with local electrical standards.
- Works on 110 / 220 / 440 Volts and 50 / 60 Hz
| Models | Capacity | Dimensions in Meters | Max No. of Trays | ||
|---|---|---|---|---|---|
| (S)OR(G) | Ltrs. | Internal | |||
| W | D | H | |||
| TH 40 S/G | 4,000 | 2.0 | 1.0 | 2.0 | 8 |
| TH 60 S/G | 6,000 | 2.0 | 1.5 | 2.0 | 12 |
| TH 80 S/G | 8,000 | 2.0 | 2.0 | 2.0 | 24 |
| TH 125 S/G | 12,500 | 2.0 | 2.5 | 2.5 | 28 |
| TH 187 S/G | 18,750 | 2.5 | 3.0 | 2.5 | 36 |
| TH 232 S/G | 23,250 | 3.1 | 3.0 | 2.5 | 40 |
| TH 320 S/G | 32,000 | 3.7 | 3.5 | 2.5 | 66 |
| TH 450 S/G | 45,000 | 3.9 | 3.9 | 3.0 | 84 |
| TH 500 S/G | 50,000 | 3.85 | 5.2 | 2.5 | 100 |
| TH 800 S/G | 80,000 | 6.4 | 5.0 | 2.5 | 200 |
| TH 960 S/G | 96,800 | 6.1 | 5.29 | 3.0 | 240 |
Note: Customized sizes are available on request.
Above chambers are suitable for conditions such as 25 °C / 60% RH, 40 °C / 75% RH and 30 °C / 65% RH.
Low RH chambers are also available for conditions of 25 °C / 40% RH, 40 °C / 25% RH and 30 °C / 35% RH.
Spacing: 30°C/ 70% RH 30°C/ 75% RH.
